UAV drone automatic recognition detector
Profile
The drone low-altitude Auto-ID detection device is designed for drones with Remote-ID (China GB42590-2023, US ASTM F3411-22a, EU ASD-STAN PrEN4709-002) and Drone-ID (such as DJI Mavic2, Mavic3, air3s, Matrice4, etc.), which can analyze detailed information such as the drone location and pilot location. It also has the ability to expand the drone spectrum detection and analysis capabilities. The detector is not affected by weather and can work 7*24 hours a week, with a detection range of more than 5km.
Features
1. Supports monitoring and analysis functions of drones with Remote-ID and Drone-ID;
2. Supports extended spectrum signal analysis function, which can detect drones at a distance of 5km and more;
3.Adopts passive radio listening, which has no impact on the surrounding electromagnetic environment, very efficient and safe;
4. Supports remote operation and maintenance, realizes equipment operation automation, and has low maintenance cost;

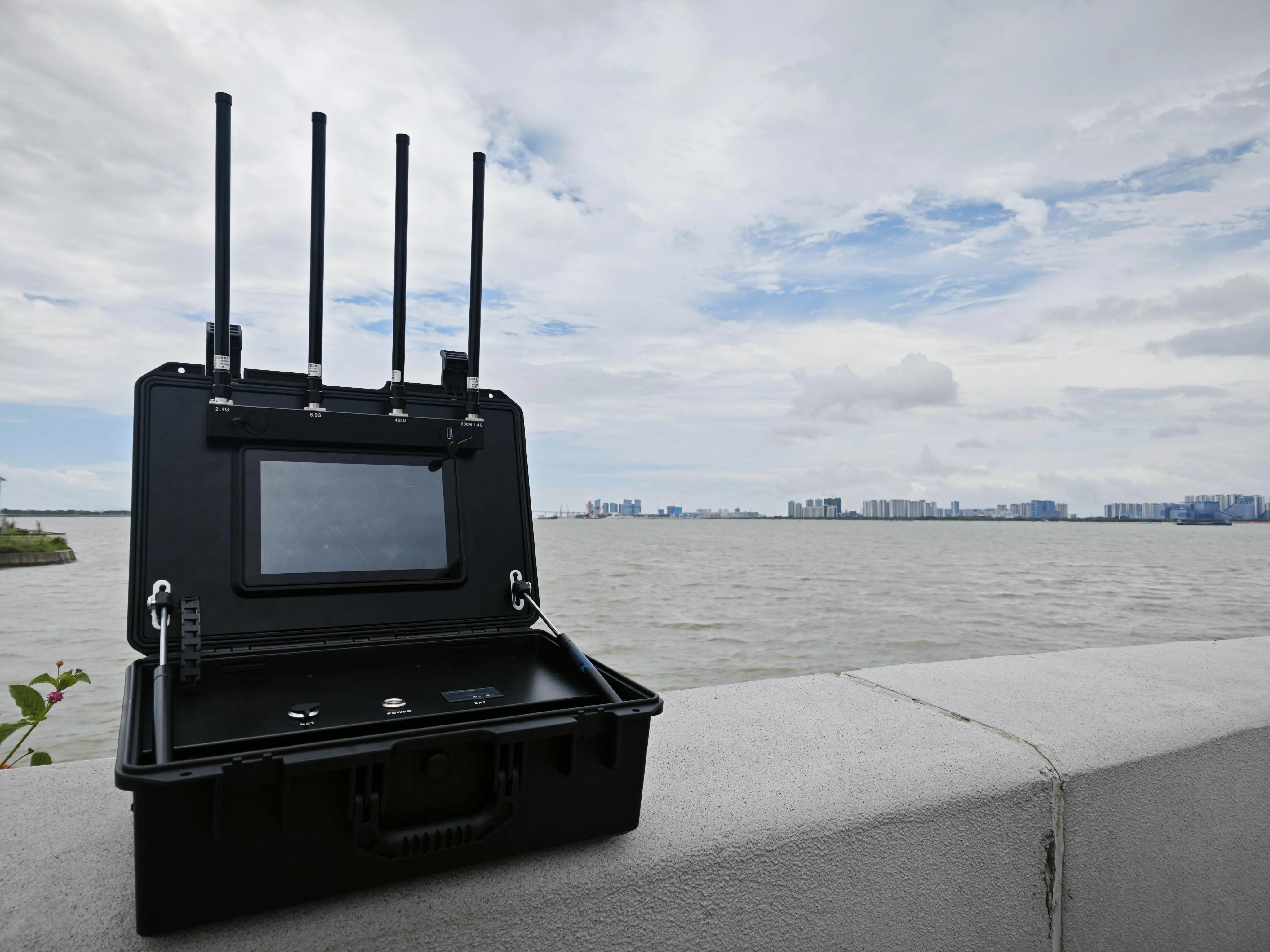

5. The detector consists of a monitoring host and an antenna, with a small size and easy installation.

Product Technical Parameters | ||
Model: Auto-ID-D20 | ||
Detection frequency |
2.4G/5.8G,can do 70MHz~6000MHz |
|
Effective detection distance |
1km~20km (The distance will be different for different drones in different environments) |
|
Positioning refresh rate |
≥30 times/min |
|
Positioning accuracy |
≤10m |
|
Number of simultaneous detections (multi-target detection) | ≥40 | |
Protocol analysis function | Remote-ID(China GB42590-2023、 US ASTM F3411-22a、EU ASD-STAN PrEN4709-002)、Drone-ID drone (DJI Mavic2、Mavic3、air3s、Matrice4 etc, Some models require Internet access for analysis), which can analyze detailed information such as the drone location and pilot location | |
Other index | ||
Power supply |
AC160~220V ,50Hz/60Hz |
|
Size |
≤320mm*260mm*110mm |
|
Weight |
≤4.5kg |
|
Communication interface |
RJ45100M network port, optional 4G module |
|
Operating temperature |
-20℃~55℃ |
|
Storage temperature |
-30℃~60℃ |
|
Power consumption ≤20w |
