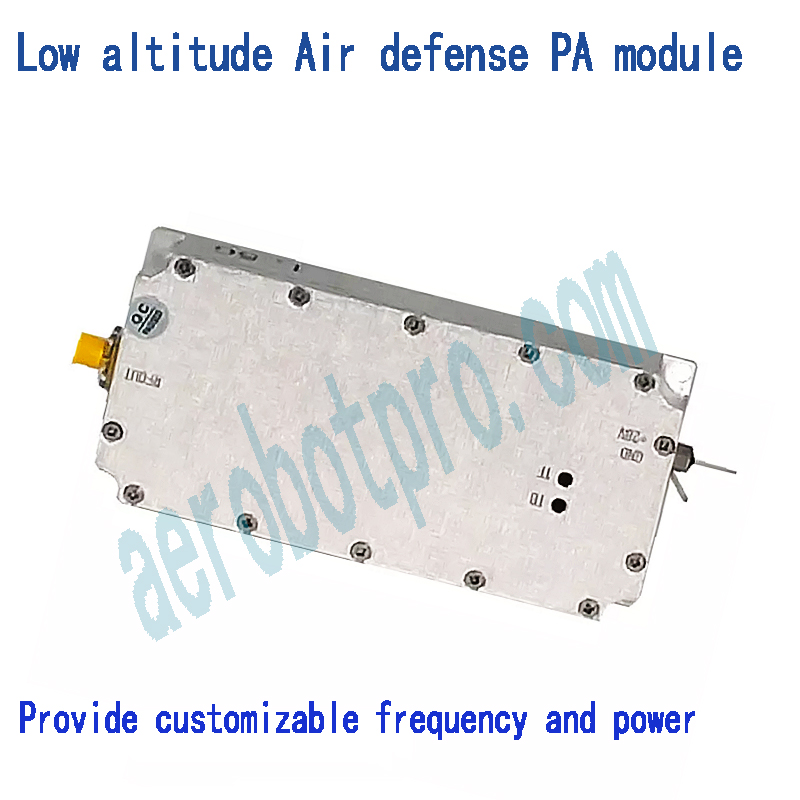

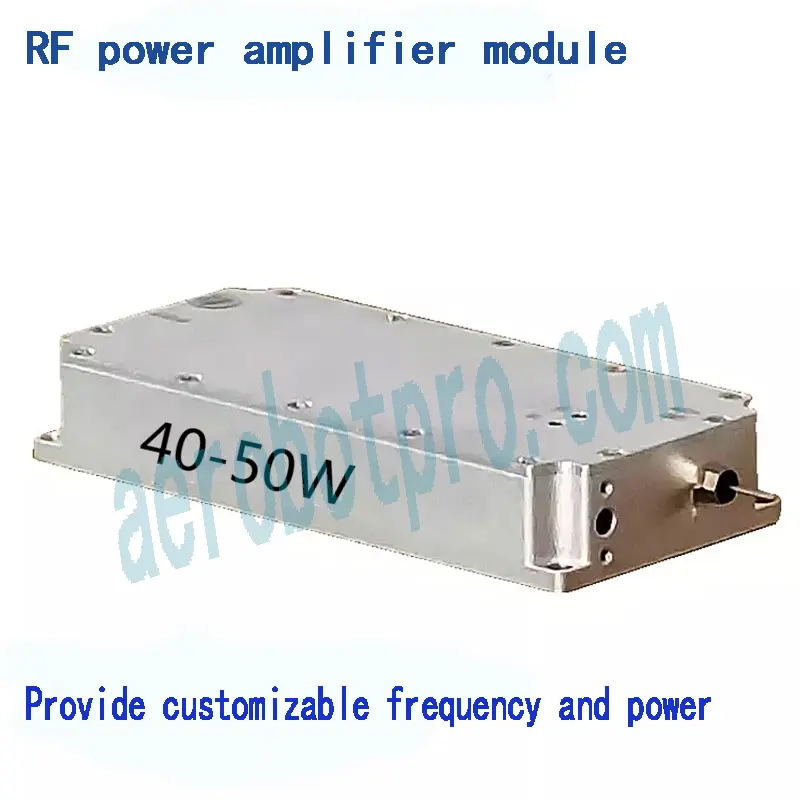

2400-2500MHz 2.4Ghz 50W Radio frequency module

we are proud to lead the innovation in Long Distance Anti Drone jammer technology for various applications,
Our Jammer are not only versatile but also can be customizable to meet your unique needs, including Anti-Drone Gun,
Handheld Anti-Drone Jammer, signal jammer, Anti Drone signal Module, Antenna, Counter-Drone Defense Solutions & Systems and more.
Our drone jamming technology can provide custom solutions and developed a range of portable and powerful drone jammers
against UAV Quadcopters working on GPS, 2.4GHz, 5.8GHz and 80M......./800/900M etc any frequencies.

    Product description

    1、Overview

    we are proud to lead the innovation in Long Distance Anti Drone jammer technology for various applications,
    Our Jammer are not only versatile but also can be customizable to meet your unique needs, including Anti-Drone Gun,
    Handheld Anti-Drone Jammer, signal jammer, Anti Drone signal Module, Antenna, Counter-Drone Defense Solutions & Systems and more.
    Our drone jamming technology can provide custom solutions and developed a range of portable and powerful drone jammers
    against UAV Quadcopters working on GPS, 2.4GHz, 5.8GHz and 80M......./800/900M etc any frequencies.

    2、Product Composition

    Electrical performance index:

    Index

    Parameter

    Operate Frequency

    2400-2500MHz

    Output CW saturation power

    ﹥50W(47dBm)±0.5 dBm

    Flat gain

    ≤1.5dB

    Working current

    ≤5..5A±0.3

    Output port standing wave

    ≤2.6

    Clutter suppression

    ≥65dBc

    Harmonic Suppression

    ≥-8dBc

    PTT control

    5V/27V (alternative)

    RF output interface

    SMA (Female)

    28V Power supply interface

    ZX-XH2.54-2PWT

    VCC Power supply

    DC: 27-30V

    VCC Max. voltage

    +30V

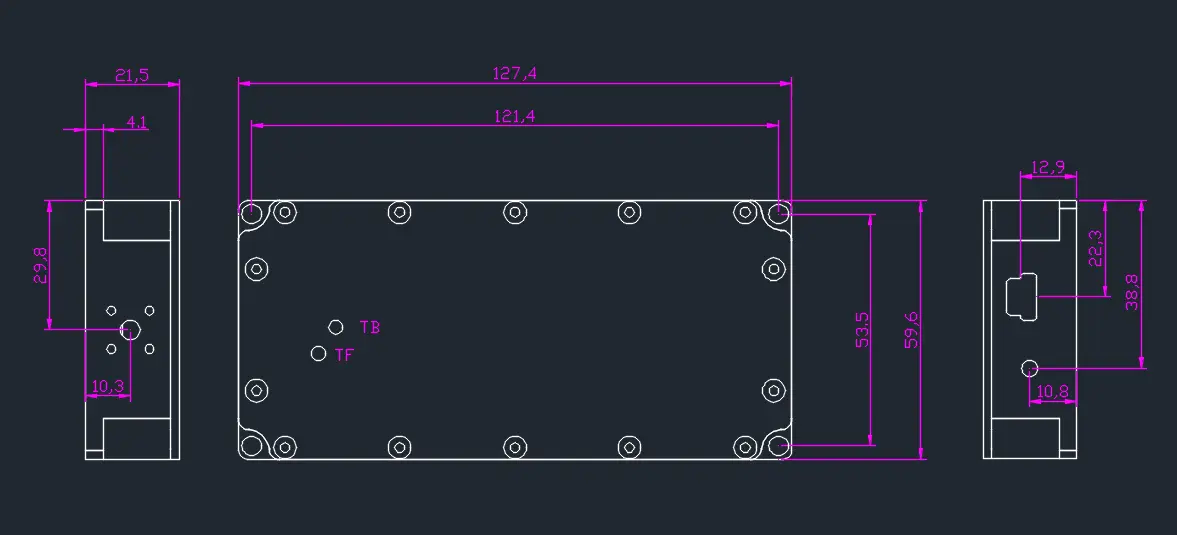

    Overall dimension

    127.4×59.6×21.5mm

    Fixed installation size

    121.4×53.5mm

    Working temperature

    -20oC~+55oC

    Installation

    Power amplifier testing requires radiator
