1560-1620MHz 100W Technical Specification for Signal Shielding Amplifier

Index

Parameter

Operate Frequency

1560-1620MHz

Output CW saturation power

≥100W（50dBm）±0.2 dBm

Flat gain

≤1.5dB

Working current

≤8A±0.5

Output port standing wave

≤2.6

Clutter suppression

≥65dBc

Harmonic Suppression

≥-8dBc

PTT control

5V/27V(alternative）

RF output interface

N Female head outer thread

28V Power supply interface

D-SUB /2W2 pin

VCC Power supply

DC: 27-30V

VCC Max. voltage

+30V

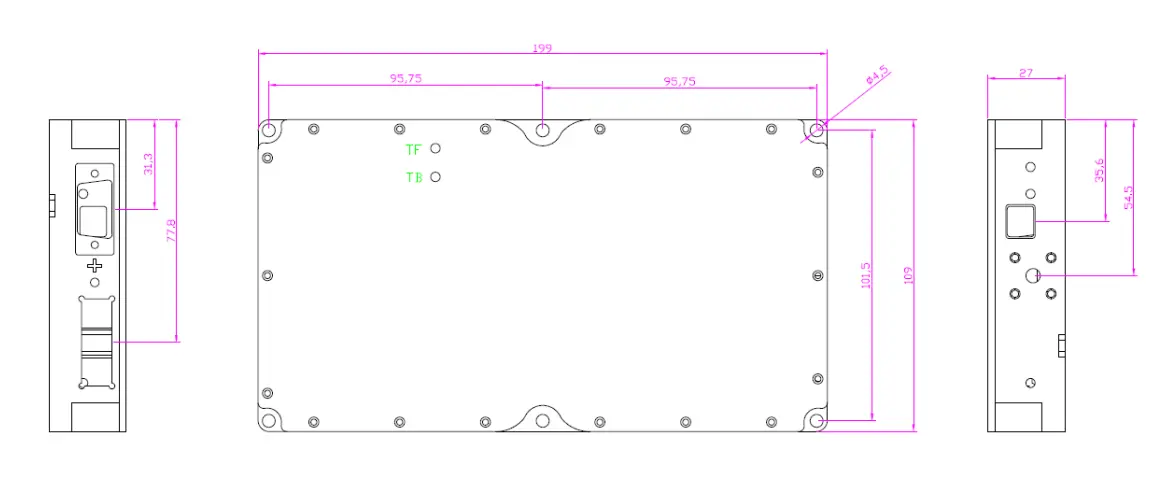

Overall dimension

199×109×27mm

Fixed installation size

95.75×95.75×101.5mm

Working temperature

-20^oC~+55^oC

Installation

Power amplifier testing requires radiator
