1160-1280MHz 1.2GHz 200W RF Power amplifier module
1160-1280MHz 200W Technical Specification
Electrical performance index：
|
Index |
Parameter |
|
Operate Frequency |
1160-1280MHz |
|
Output CW saturation power |
≥200W（53dBm）±0.2 dBm |
|
Flat gain |
≤1.5dB |
|
Working current |
≤8A±0.5 |
|
Output port standing wave |
≤2.6 |
|
Clutter suppression |
≥65dBc |
|
Harmonic Suppression |
≥-8dBc |
|
PTT control |
5V/27V (alternative） |
|
RF output interface |
N Female head outer thread |
|
28V Power supply interface |
D-SUB /2W2 Pin |
|
VCC Power supply |
DC： 27-30V |
|
VCC Max. voltage |
+30V |
|
Overall dimension |

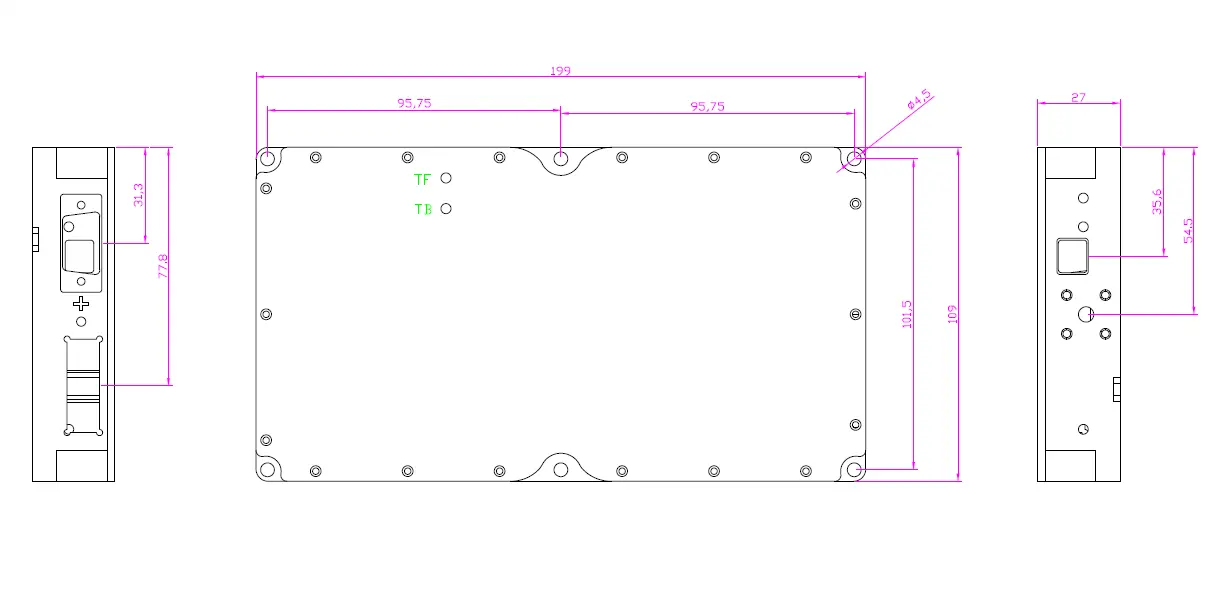

199×109×27mm |
|
Fixed installation size |
95.75×95.75×101.5mm |
|
Working temperature |
-20oC~+55oC |
|
Installation |
Power amplifier testing requires radiator |
Configuration:
